Single Column Vertical Turning Lathe Machine With Large Max. Turning Diameter 2600mm

C5126 Universal large Single Column Vertical Turning Lathe

A. Function and features:

1. Vertical Turning Lathe is mostly used to process middle-diameter tire mould and flanges, various valves and pipelines, pressure vessels, screw propeller, steamer machine accessories , plastic mould, shafts and other work-piece

2. Vertical Turning Lathe is suitable for processing the internal/external cylindrical surface, conical surface, end face etc

3. Spindle bearings use domestic famous-brand company products.

4. Headstock takes symmetrical structure to make thermal deformation be even, avoiding the spindle center generates offsets.

5. Gears in headstock and guide way are processed by quenching to ensure accurate transmission and high rigidity.

6. Vertical lathe table inlaids with zinc alloy wear-resistant guide guard and can access pressure oil (0.2-0.4MPA) between the rails for improving load-carrying ability of workbench.

7. Vertical lathe casting has passed through strict artificially aged and vibration aging in order to make sure the rigidity and stability of lathe.

B. Main technical data:

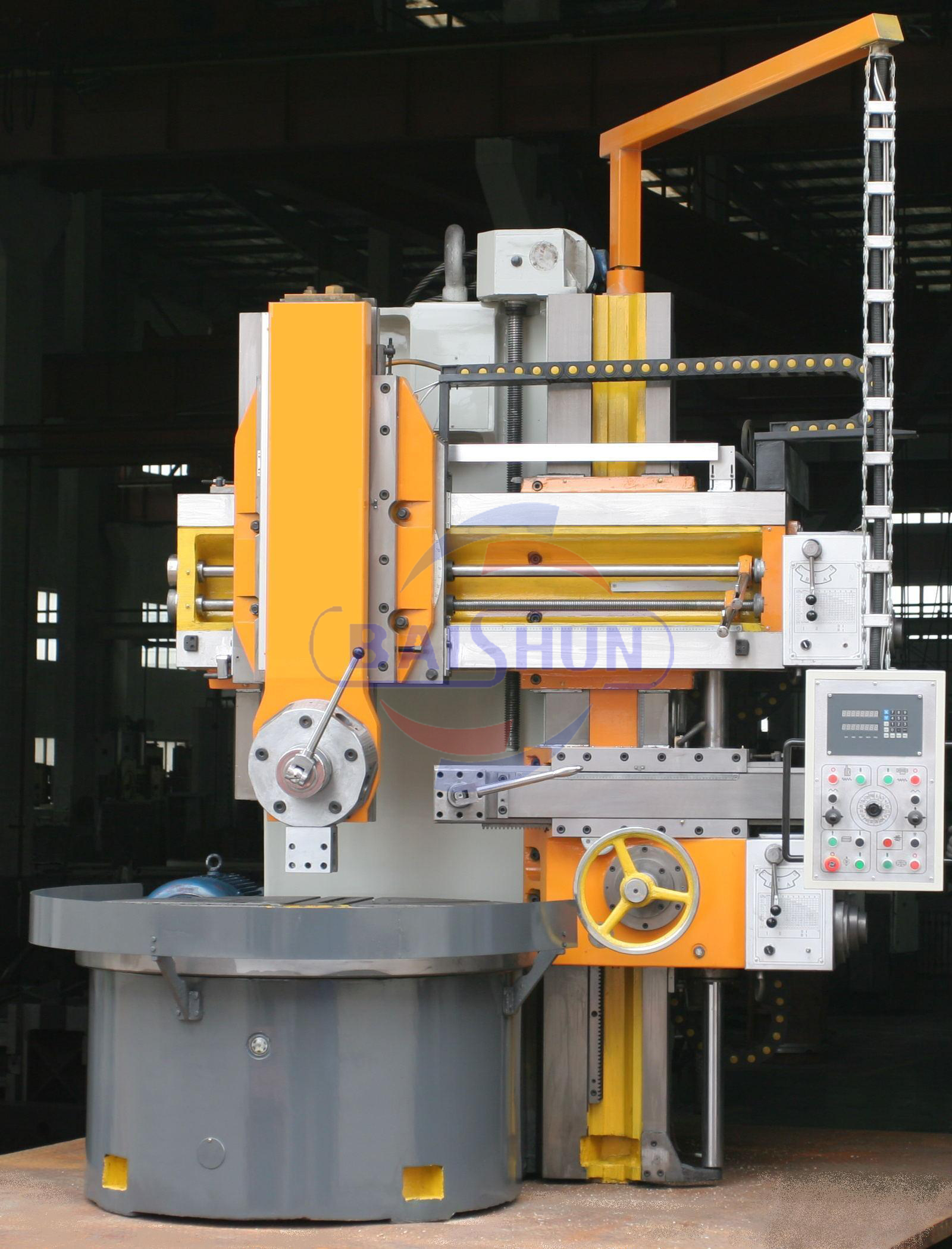

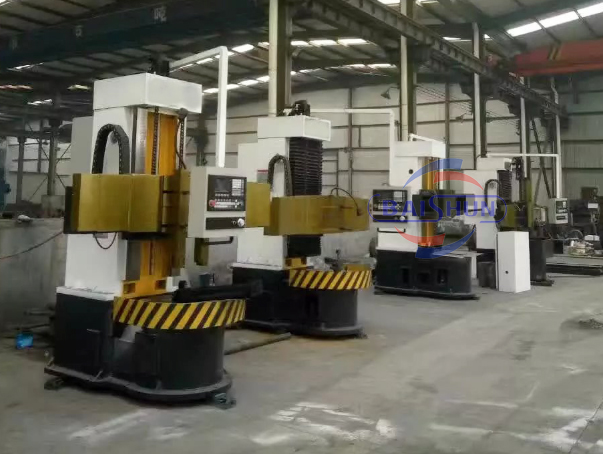

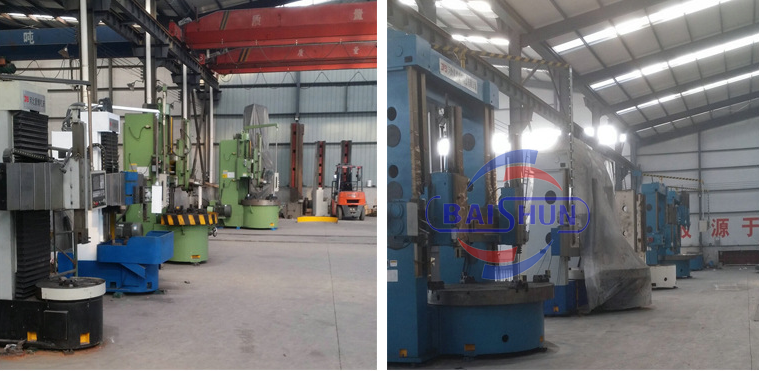

C. Machine picture for your reference:

E. Welcome inquiry.
